How to Lay a Patio & Paving Slabs: Complete Guide

Start by deciding what the patio needs to do. A seating area for two chairs demands a different layout than a dining space or heavy-use walkway. Measure the area carefully and mark it out with string lines so you can visualise the footprint before you break ground. Accurate dimensions help you calculate slab numbers, sub-base depth and bedding quantities without overordering or falling short halfway through the job.

Next, assess levels and drainage. Patios must slope away from buildings so water runs off the surface instead of collecting against walls. Keep the finished paving below the damp-proof course to reduce splashback risk. Check access routes for aggregates and slabs, since bulk materials add weight and handling challenges. Careful measurement also helps you select appropriate patio and outdoor project materials that suit the size, load and ground conditions of your space. Proper planning at this stage prevents uneven surfaces, drainage issues and wasted materials later.

Tools and materials checklist

Get everything on site before you start. Laying paving slabs will run smoothly when your hand tools and materials are ready and within reach.



Tools

• Spirit level: Checks slabs sit flat and follow the planned drainage fall.

• String line and timber pegs: Marks straight edges and keeps courses aligned.

• Rubber mallet: Beds slabs firmly without chipping corners.

• Shovel and rake: Excavates soil and levels sub-base material.

• Plate compactor: Compacts MOT Type 1 in layers to form a stable foundation.

• Wheelbarrow: Moves aggregates and mortar efficiently across site.

• Trowels and floats: To spread bedding mortar evenly and support even finishing.

• Angle grinder: With suitable cutting and diamond blades, you can produce clean, precise cuts for edges and corners.

• PPE: To protect your hands and eyes during mixing and cutting.



Materials

Next, choose your materials carefully, since the structure beneath the slabs determines how long the patio performs.

• Paving slabs: Select thickness and finish to suit traffic levels and intended use.

• MOT Type 1 sub-base: Creates the compacted structural layer beneath the patio.

• Sharp sand and cement: Mixed at 4:1 to form a strong full mortar bedding.

• Jointing material: Completes the surface and locks slabs in position once set.

Mark out the area and excavate to the correct depth, allowing for slab thickness, a 30–40mm mortar bed and at least 100mm of compacted MOT Type 1 for standard domestic patios. Remove all topsoil, roots and organic material. Soft or contaminated ground causes movement later. Keep the excavation level and consistent across the footprint so the finished surface sits evenly.

Lay the MOT Type 1 in layers of around 50mm and press down each layer thoroughly with a plate compactor. Well-compacted sub-base spreads load evenly and prevents slabs from rocking or sinking over time. Check the levels and confirm the planned fall away from buildings before moving on. A solid, well-compacted base determines how long the patio will last.

Calculating slabs and sub-base quantities

Measure the patio area in square metres by multiplying length by width. Divide that figure by the size of your chosen slabs to calculate quantities, then add 5–10% to allow for cuts and breakages. The sub-base volume will depend on depth. For a typical domestic patio, allow at least 100mm of compacted MOT Type 1. Multiply area by depth to calculate cubic metres, then check supplier coverage rates to estimate tonnes or bulk bags accurately. Careful quantity planning prevents delays when laying paving slabs and keeps the project moving without last-minute material shortages.

Avoid laying slabs directly onto soil. Soil softens and shifts with moisture, which leads to movement and uneven paving. Laying paving slabs on sharp sand alone may suit very light-use paths on stable ground, but it increases the risk of settlement and water pooling. A properly compacted sub-base combined with a full mortar bed spreads load evenly and provides long-term stability when laying a patio designed to last.

Correct mortar & bedding

The bedding layer supports each slab and transfers load into the compacted sub-base. A common cement mix for laying a patio uses four parts sharp sand to one part cement. Measure ratios carefully and mix until the mortar feels workable but firm. It should hold its shape when squeezed without releasing excess water. Over-wet mortar weakens strength and increases shrinkage during curing.

Apply a full mortar bed beneath every slab rather than spot bedding. Full coverage prevents hollow sections and reduces the risk of cracked corners under load. Bedding thickness typically falls between 20–50mm depending on slab type and levels. Porcelain paving usually requires a primer slurry on the underside to improve bond strength. Quality cement and mortar mixes help maintain consistent performance, and ready-mix mortar and cement can reduce ratio errors on smaller projects.

Once the ground is prepared correctly, learning how to lay a patio becomes a controlled, methodical process. Work in stages and focus on accuracy rather than speed. Check levels regularly, keep bedding consistent and avoid rushing slab placement. Small errors early on can affect the entire surface.

The following steps show how to lay paving slabs in the correct sequence, starting with setting out and ending with joint preparation. Each stage builds on the one before it. Stay organised, measure carefully and make adjustments while materials remain workable. Taking your time at this point produces a patio that looks straight, drains properly and remains stable under regular use.

Step 1: Mark out and prepare the area

Mark the patio outline using string lines and pegs to define straight edges and square corners. Check levels across the area and set a slight fall away from buildings so water drains correctly before you begin excavation.

Step 2: Create a solid sub-base

Excavate to the planned depth, allowing for sub-base, bedding and slab thickness. Lay MOT Type 1 in layers and compact each layer thoroughly with a plate compactor to create a firm, well-draining foundation.

Step 3: Lay the bedding mix

Mix sharp sand and cement to the correct ratio, then spread a full mortar bed evenly across the prepared area. Keep the thickness consistent so each slab receives solid support without hollow gaps beneath.

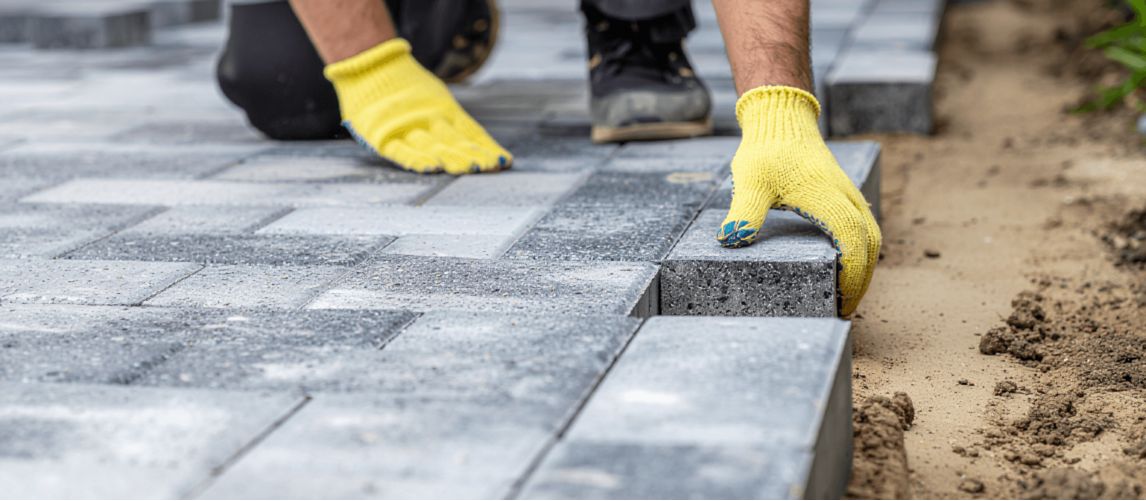

Step 4: Place and level the paving slabs

Lower each slab carefully onto the mortar bed and tap it into position with a rubber mallet. Check levels and alignment immediately, adjusting while the mortar remains workable to maintain an even surface.

Step 5: Check spacing and prepare for jointing

Maintain consistent joint gaps between slabs to keep lines straight and uniform. Brush away excess mortar and allow the bedding to begin setting before applying jointing material to secure the finished surface.

Once the slabs sit firmly and the bedding has begun to set, fill the joints to secure the surface. Use a sand and cement pointing mix or apply a suitable jointing compound, pressing it firmly into each gap. Compact the material fully so it locks the slabs together and prevents water from entering beneath the surface. Work methodically across the patio and avoid leaving voids.

Clean the slabs as you go. Brush off excess mortar before it hardens and wipe away residue carefully, especially on textured or porous paving. Do not flood the area with water while joints remain fresh. Allow the bedding and jointing to cure fully before placing furniture or allowing foot traffic. Proper curing strengthens the structure and reduces the risk of cracked joints or disturbed slabs.

How to ensure good drainage & patio fall

Set the patio to fall gently away from buildings so rainwater drains safely. Aim for a gradient of around 1:80, which equals roughly 12–13mm of drop per metre. In areas exposed to heavy rainfall, some installers increase the fall slightly, but avoid excessive slope that feels uneven underfoot. Check the fall with a long spirit level during sub-base preparation and confirm it again while laying slabs.

Poor drainage leads to standing water, slippery surfaces and gradual joint breakdown. Avoid installing slabs completely flat and do not raise paving to meet internal floor level. Keep the finished surface below the damp-proof course to reduce splashback risk. Maintain consistent compaction and bedding thickness so you do not create hidden low spots. Careful control of levels at every stage prevents water pooling and protects the patio long term.
